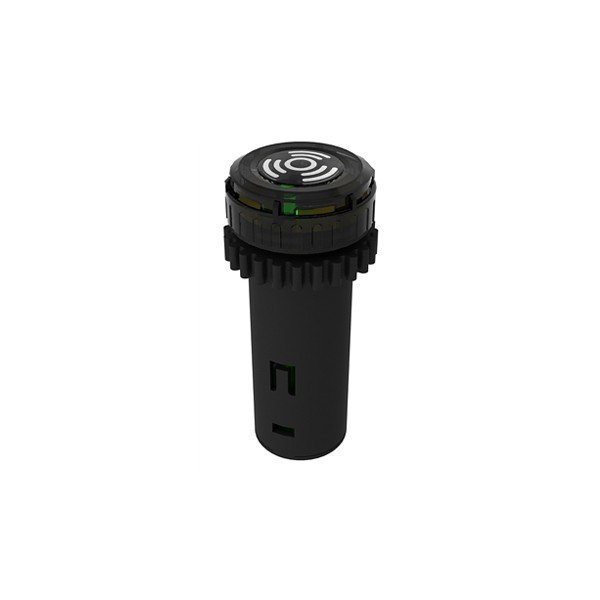

B2NB-B1D-G Buzzer, Audio Indicator
Roll over image to zoom in
USD $73.53
- 12 to 30 Volts AC/DC
- Steady or pulse tone - all in one unit
- Great 22mm package buzzer/LED
- 85db at 0.1m/75db at 1m
- Green LED indicator
B2NB-B1D-G B2NBB1DG Selectable Tone Buzzer with Green LED
B2NB-B1D-G 22.5mm panel mount Selectable tone buzzer with LED Indication. The buzzer operates on 12-30VAC/DC and mounts into a Standard 22.5mm diameter hole.
| Degree of protection |
| Operating Voltage Range (V.D.C.) |
| Current Consumption (mA) |
| Sound Pressure Level (dB) |
| Rated Voltage (VDC) |
| Tone |
| Operating Temperature (?) |
| Storage Temperature (?) |
| Vibration |
| operation frequency |
| IP 40 |
| 12-30V AC/DC |
| 60ma |
| 85db |
| Selectable continuous and intermittent |
| Continuous |
| -15 ~ +40 |
| -40 ~ +70 |
| 10-55hz with 3mm pick to pick |
| 2-3 times per second |
Piezo Buzzer?Crossreference
This item is equivalent to or can substitute these items from other manufacturers
| Honeywell | N/A |
| Omron | N/A |
| Telemecanique | N/A |
| Panasonic | N/A |
| Aromat | N/A |
| Schlegel Eletrokontakt | N/A |
| Pizzato | N/A |
| Comepi | N/A |
| Saia Burgess | N/A |
| ?AB Allen Bradley | N/A |
| ?Lovato | N/A |
| Eaton | N/A |
| Cutler Hammer | N/A |
| ?Carlo Gavazzi Electromatic | N/A |
| ?Schnider | N/A |
| Square D | N/A |
