MJ3-511104 Panel Mount Large Overtravel with Screwed Sleeve Extended Straight Plunger Moujen Micro Switch
Roll over image to zoom in
USD $24.25
Buy Moujen MJ3-511104 5A 250VAC 4A 24VDC, 1.1A 125VDC, IP40 cURus CE approved, Positive Opening. Free Shipping on orders over $100 US. Fast Delivery One Year Warranty. 1-877-225-5824

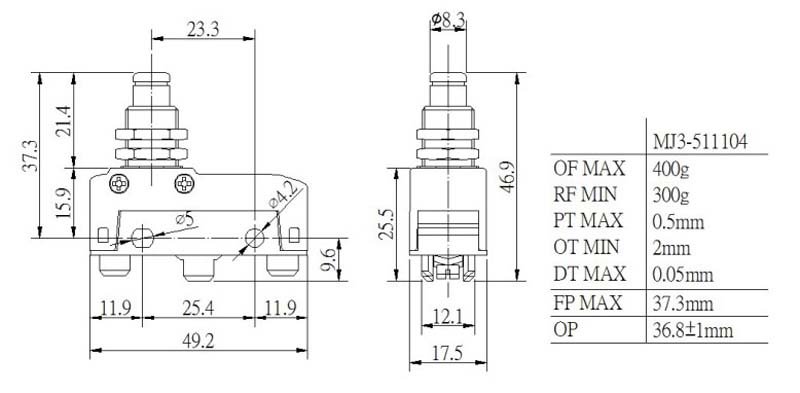

MOUJEN MJ3-511104 Panel Mount Large Overtravel with Screwed Sleeve Extended Straight Plunger Switch
- OF: Operating Force Max 400 g
- RF: Release Force Min 300 g
- PT: Pretravel Max 0.5 mm
- OT: Over Travel Min 2 mm
- DT: Differential Travel Max 0.05 mm
- FP Max : 37.3 mm
- OP: Operating Position 36.8 +-1 mm
Limit Switch Crossreference
This item is equivalent to or can substitute these items from other manufacturers
This item is equivalent to or can substitute these items from other manufacturers
| Honeywell | ?BZ-2RQ1-A2 |
| Omron | ?Z-15GQ8-B, Z-15GQ-B |
| SAIA Burgess | ?CT2Q-A2, PN4-1 |
| SAIA Burgess | ?PN41, CR1Q |
| Honeywell | ?BZ-2RQ115-A2 |
| Honeywell | ?BZ-2RQ13-A2 |
| Honeywell | ?BZ-2RQ239-A2 |
| Moujen | ?MJ3-511104 |
| Siemens | ?N/A |
| Eaton | ?E47BMS04 |
| Cutler Hammer | ?E47BMS04 |
| Panasonic | ?AM1307F |
| Aromat / Nais | ?AM1307F |
| Omran | ?Z-15GQ3-B,?Z-15GQ3-B |
| ?Allen Bradley | ?N/A |
| ?Moujen | ?MJ2-1307 |
Not sure about the application? Call us now!
Trillium controls provides Micro switches used in a variety of applications and environments, manufactured with a variety of operator types, including lever and roller plunger. Our Series cover almost your needs.
