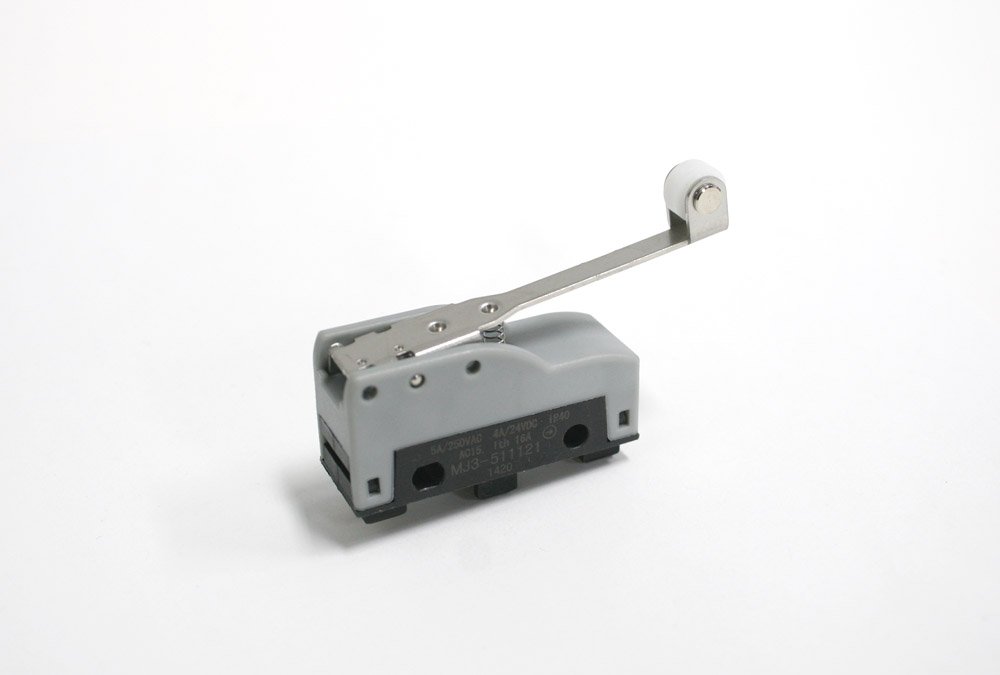

MJ3-511121 Extended Hinge Roller Lever Moujen Micro Switch

USD $18.16

In stock

Buy Moujen MJ3-511121 5A 250VAC 4A 24VDC, 1.1A 125VDC, IP40 cURus CE approved, Positive Opening. Free Shipping on orders over $100 US. Fast Delivery One Year Warranty. 1-877-225-5824

Compare

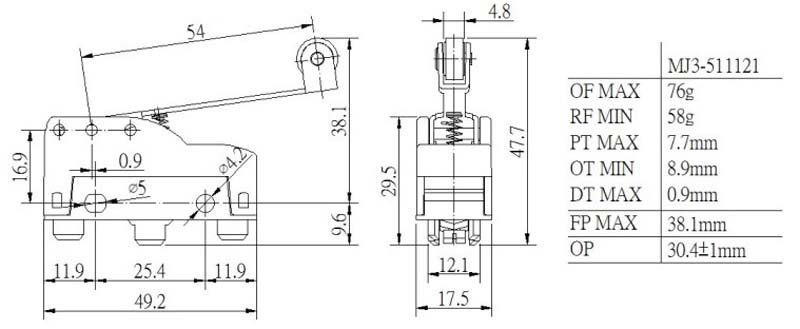

MOUJEN MJ3-511121 Extended Hinge Roller Lever Micro Switch Positive Opening

  • OF: Operating Force Max 76 g
  • RF: Release Force Min 58 g
  • PT: Pretravel Max 7.7 mm
  • OT: Over Travel Min 8.9 mm
  • DT: Differential Travel Max 0.9 mm
  • FP Max : 38.1 mm
  • OP: Operating Position 30.4 +- 1 mm

Limit Switch Crossreference
This item is equivalent to or can substitute these items from other manufacturers

Honeywell ?BZ-2RW822-A2
Omron ?Z-15GW2-B
SAIA Burgess ?CT2MR-A2, PN4-GK48
SAIA Burgess ?CT2KR-A2, CR1KR
Honeywell
Honeywell
Honeywell
Moujen ?MJ3-511121
Siemens ?N/A
Eaton ?E47BMS42
Cutler Hammer ?E47BMS42
Panasonic ?AM1703F
Aromat / Nais ?AM1703F
Yamatake ?N/A
?Allen Bradley ?N/A
?Moujen ?MJ2-1703

Not sure about the application? Call us now!

Trillium controls provides Micro switches used in a variety of applications and environments, manufactured with a variety of operator types, including lever and roller plunger. Our Series cover almost your needs.
